NZXT

NZXT H5 Flow RGB (2024)

MVR 3,290.00
/
Color
  • In stock, ready to ship
  • Backordered, shipping soon
  • Free shipping ( Payment on delivery ) Available at checkout

Tech Specs

Key Specs

  • Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

  • Enclosure Type:Mid-Tower

  • Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

  • Height (with feet):465 mm / 18.31 in

  • Width:225 mm / 8.86 in

  • Depth:430 mm / 16.93 in

  • Weight:7.63 kg / 16.82 lb

Compatibility & Clearance

  • CPU Cooler Height:Up to 170 mm

  • GPU Length:Up to 410 mm

  • PSU Length:Up to 200 mm

  • Cable Management:Up to 28.7 mm

  • Top Radiator:Up to 240 mm (280 mm with low-profile memory)

  • Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm

Front Ports

  • USB 3.2 Type-A:1

  • USB 3.2 Gen 2x2 Type-C (20 Gbps):1

  • Headset Audio Jack:1

Expansion Slots

  • Standard:7

  • Vertical:0

Drive Bays

  • 2.5":2

  • 3.5":1

Fan Support

  • Front:3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)

  • Top:2 x 120 mm / 2 x 140 mm

  • Bottom:2 x 120 mm

  • Rear:1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

  • Front:Up to 360 mm

  • Top:Up to 240 mm (280mm with low-profile memory only)

Fan Specs

  • Model:F360 RGB Core (Case Version)

  • Speed:1,700 ± 200 RPM

  • Airflow:50.1 CFM

  • Static:1.27 mm-H₂O

  • Noise:23.3 dBA

  • Fan Connector:3-pin

Fan Specs

  • Model:F120Q (Case Version)

  • Speed:1,350 ± 150 RPM

  • Airflow:60.2 CFM

  • Static:1.05 mm-H₂O

  • Noise:24.1 dBA

  • Fan Connector:3-pin



Pairs well with

NZXT H5 FLOW RGB

Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.

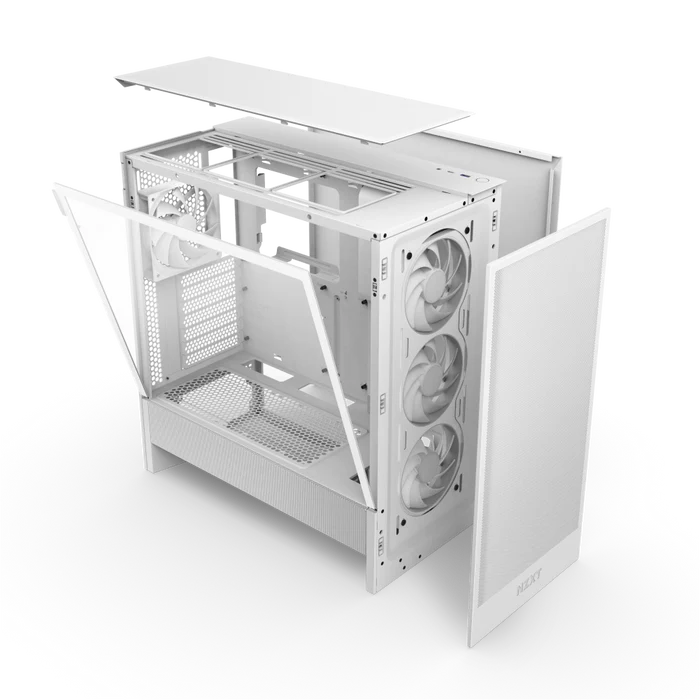

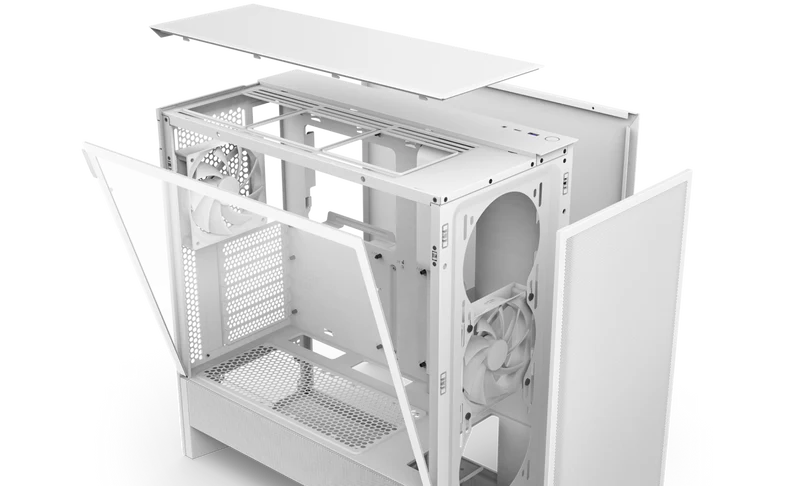

Tool-lESS

Access

Easily open up the front, side, and top panels without any tools.

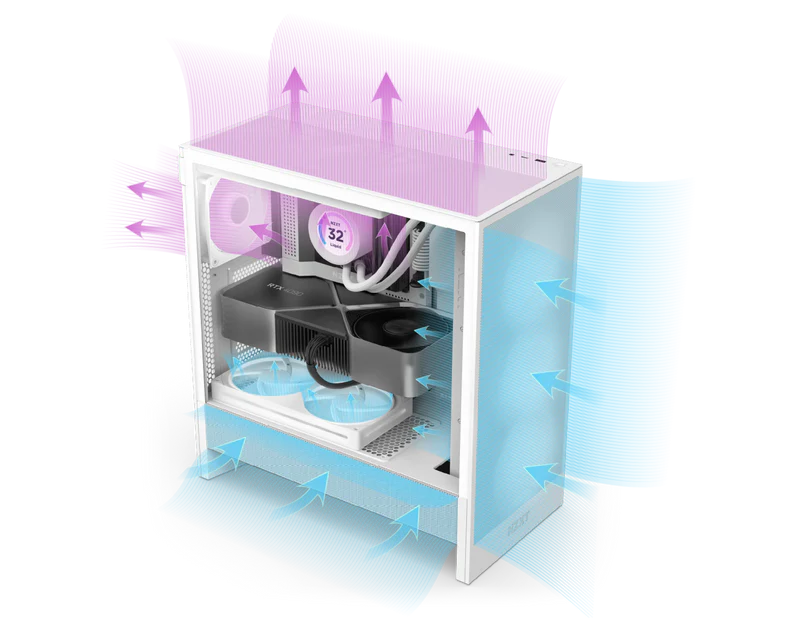

MORE

Air TO the Gpu

Optimize Airflow Efficiency with Mesh PSU Shroud for Dual 120mm Fans.

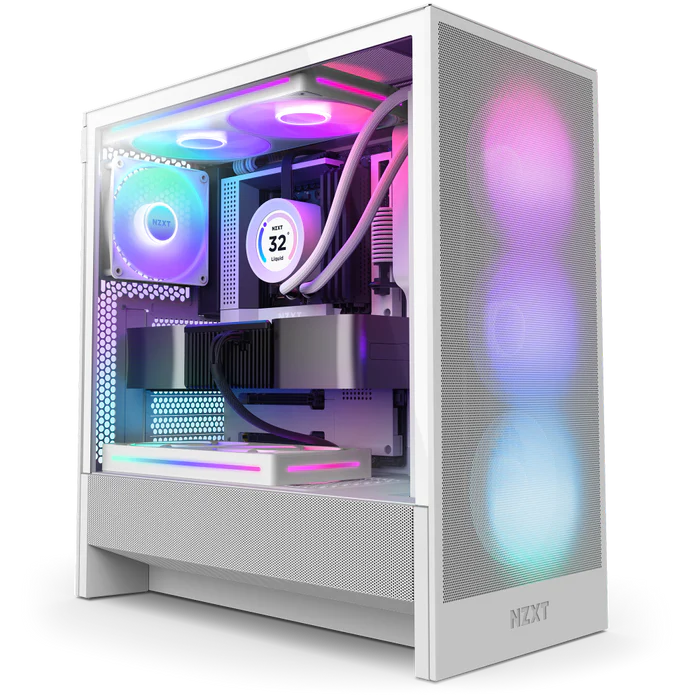

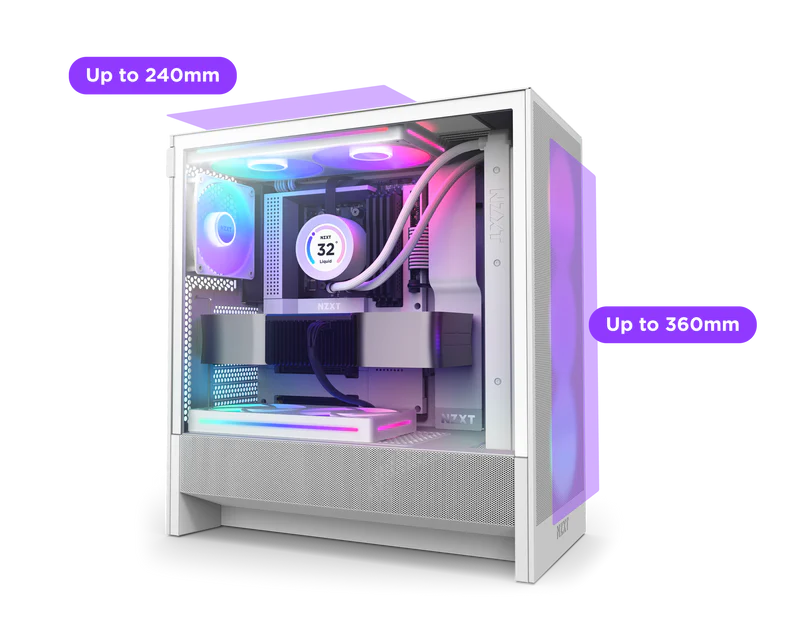

FITS

Large Radiators

Compatibility for 360mm radiator in the front and 240mm radiator on the top for liquid and all in one coolers

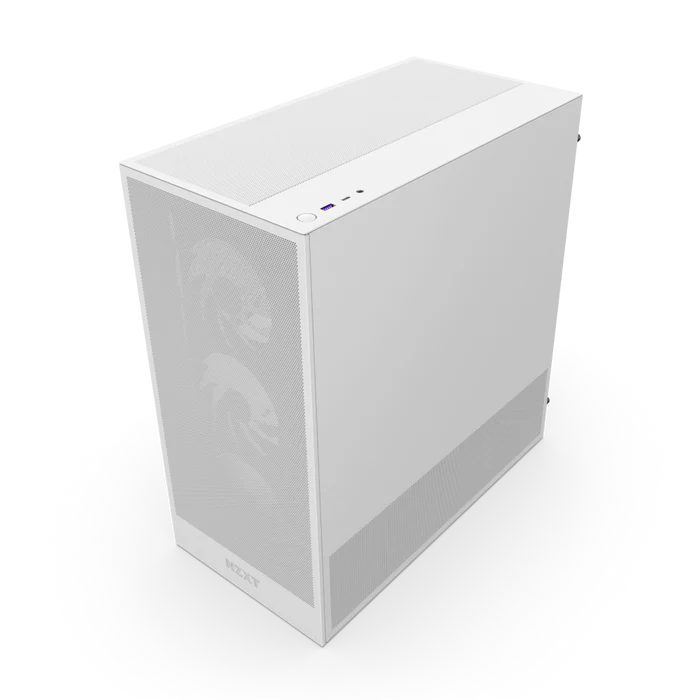

Made

For airflow

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

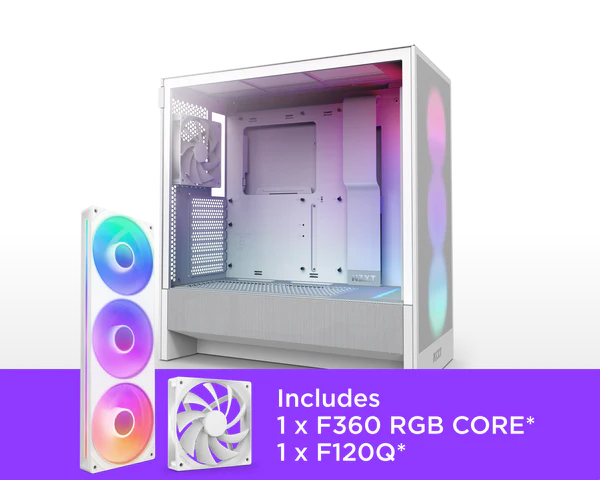

PRE

installed-Fans

Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.

*Case Version (3-pin DC)

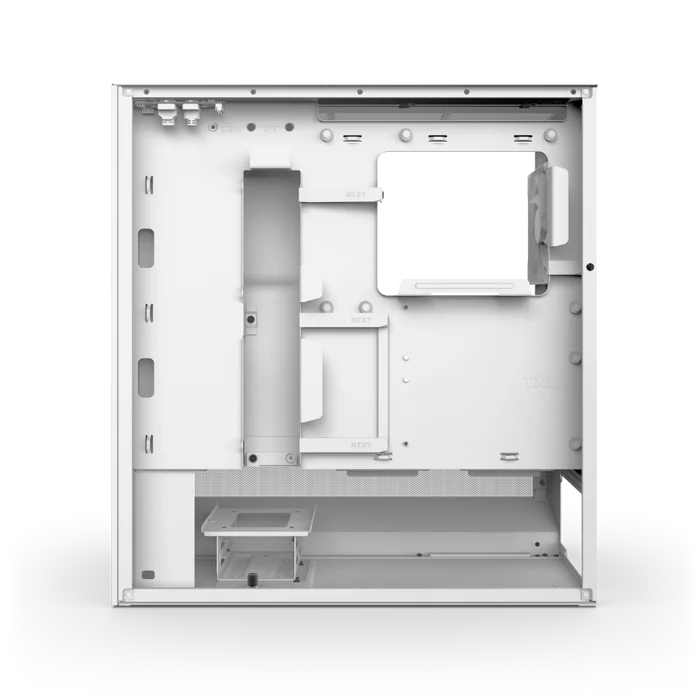

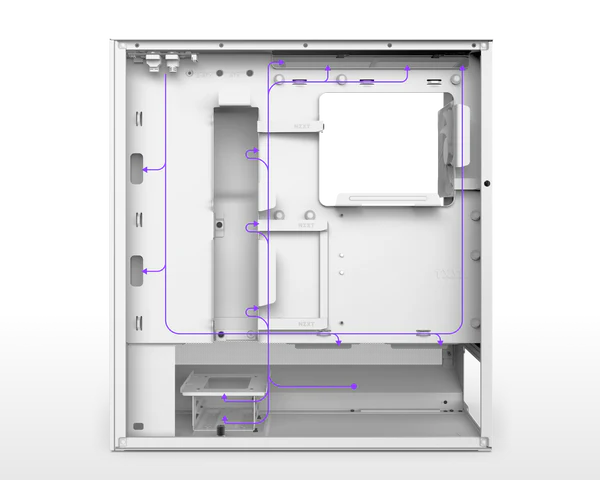

Ease

of cable management

Easily guide and hide cables with spacious channels, hooks, and straps.

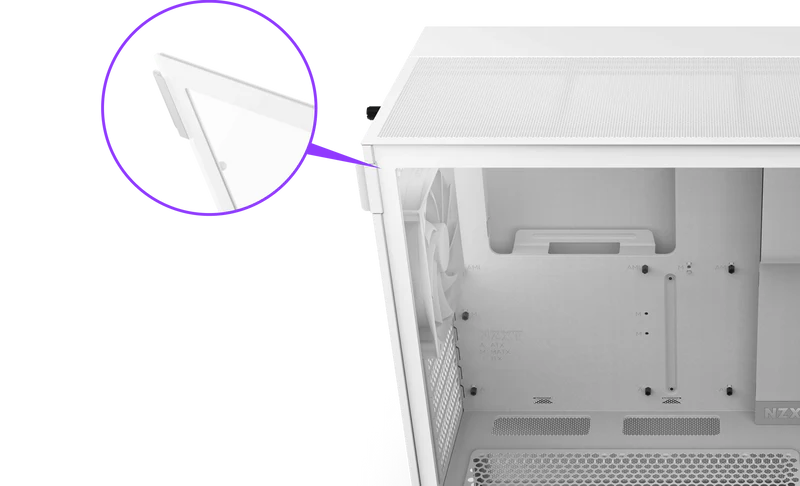

Strong

And Sleek

Crafted from thick steel and tempered glass for long-lasting quality.

TECH SPECS

  • Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
  • Enclosure Type : Mid-Tower
  • Case Material : SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
  • Height : 465 mm / 18.31 in
  • Width: 225 mm / 8.86 in
  • Depth : 430 mm / 16.93 in
  • Weight : 7.63 kg / 16.82 lb
  • CPU Cooler Height : up to 170 mm
  • GPU Length: Up to 410 mm
  • PSU Length: Up to 200 mm
  • Cable Length: Up to 28.7 mm
  • Top Radiator: Up to 240 mm (280 mm with low-profile memory)
  • Top Mounted Radiator + Fan Thickness : Up to 55 mm
  • USB 3.2 Type-A: 1
  • USB 3.2 Gen 2x2 Type-C (20 Gbps): 1
  • Headset Audio Jack: 1
  • 2.5": 2
  • 3.5": 1
  • Front: 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
  • Top: 2 x 120 mm / 2 x 140 mm
  • Bottom: 2 x 120 mm
  • Rear: 1 x 120 mm (1 x F120Q Case Version included)
  • Front: Up to 360 mm
  • Top: Up to 240 mm (280 mm with low-profile memory only)
  • Model: F360 RGB Core (Case Version)
  • Speed: 1,700 ± 200 RPM
  • Airflow: 50.1 CFMStatic1.27 mm-H₂O
  • Noise: 23.3 dBA
  • Fan Connector: 3-pin DC
